Afvoerplug
GN 741-26-M20X1,5-AS-1 Aluminium, 120°CAL - Aluminium
Art.-Nr.: 1212598Leveranciersnummer: 741-26-M20X1,5-AS-1douanetariefnummer: 83099090EAN: 4045525365803
VPE (Verpakking): 10 stukAantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving
Threaded plugs GN 741 are fitted with outside diameter d1 to suit screw holes with BSP threads to DIN 3852. The sealing ring is embedded in a radial recess on the flat side. This prevents the seal from being lost or squeezed out during tightening.
Specificaties

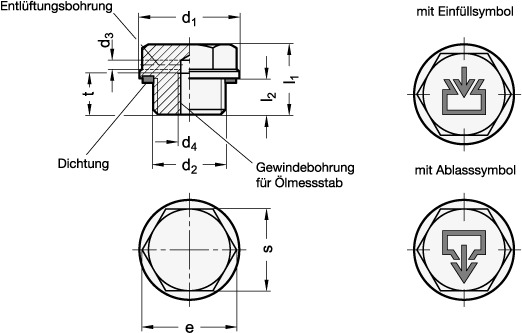

Buitendiameter d1
26
Fijne draad d2
M 20 x 1,5
Gewicht
0.016 kg
L1
16
L2
8.5
Materiaal
AL - Aluminium
Ontluchtingsgat
1 - zonder ontluchtingsgat
RoHS
Ja
Vorm
AS - met DIN-afvoersymbool, blanco
d3 Entlüftungsbohrung
2
d4
M 5
e
24.3
e ≈
24.3
s
21
t
8
