Beschrijving

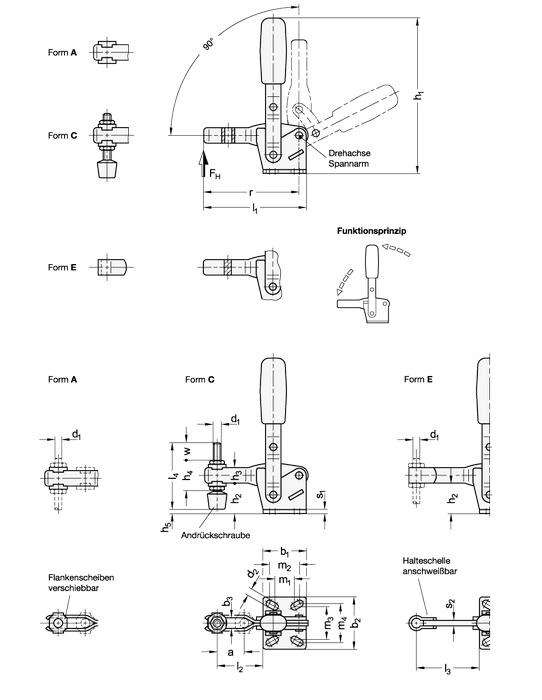

Toggle clamps GN 810 work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position. Toggle clamps in the U-bar version with two flanged washers (type A) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for Type C. Toggle clamps in type E can be adapted to special requirements by welding with the supplied clasp.
Specificaties
A
40
FH Haltekraft
2000 N
FH in N holding force
2000
Gewicht
0.375 kg
L2
58
Maat
230
Materiaal
C 10 - Gevalhard staal C 10
R
104
RoHS
Ja
Vorm
A - open klemarm, met 2 flankschijven
Vorm E
112
a ≈
40
b1
43
b2
45
b3
8.5
d1
M 8
d2
6.5
d2 ≈
6.5
h1
168
h1 ≈
168
h2
33.5
h3
18
l1 Form A Form C
110.5
l1 ≈Form AForm C
110.5
l2 ≈
58
m1
19
m2
20
m3
32
m4
32
r ≈
104
s1
3
