Verticale klem, horizontale basis

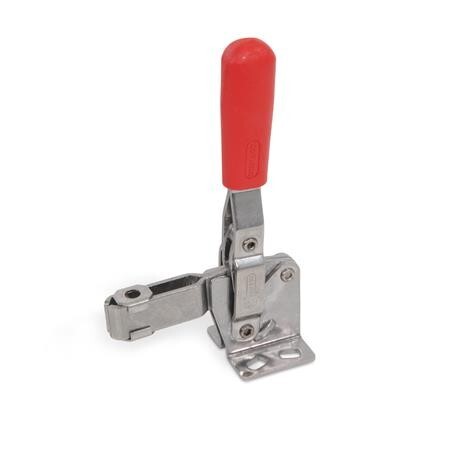

GN 810-75-A-NI Roestvrij staal, open klemarm
NI - Roestvrij staal
Art.-Nr.: 1180726Leveranciersnummer: 810-75-A-NIEAN: 4045525897441

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 27 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Toggle clamps GN 810 work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position. Toggle clamps in the U-bar version with two flanged washers (type A) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for Type C. Toggle clamps in the type E version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component.
Specificaties
A
20
FH in N holding force
750
L2
31.5
Maat
75
Materiaal
NI - Roestvrij staal
R
62.5
RoHS
Ja
Vorm
A - open klemarm, met 2 flankschijven
Vorm E
67
a ≈
20
b1
29
b2
34
b3
5.2
d1
M 5
d2
4.5
d2 ≈
4.5
h1
98
h1 ≈
98
h2
20.5
h3
11
l1 ≈Form AForm C
66.5
l2 ≈
31.5
m1
15
m2
16
m3
24
m4
24
r ≈
62.5
s1
2
