Beschrijving

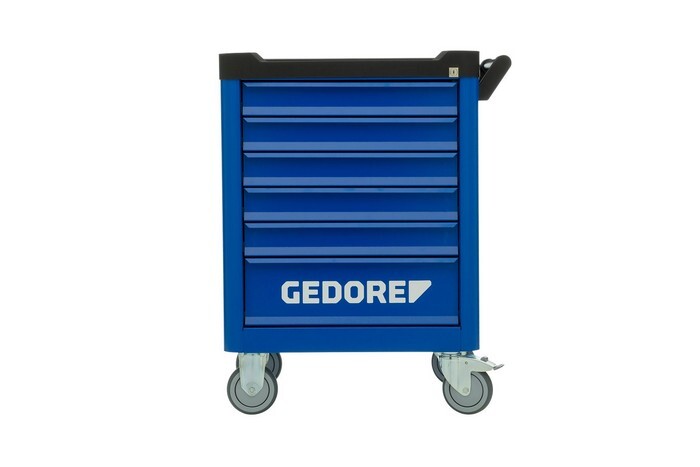

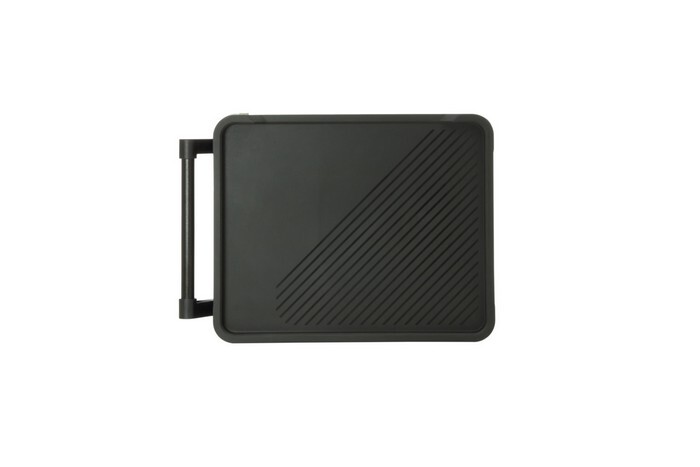

Body: Dimensions: H 903x B 629x D 510 mm, Work platform with ABS plastic cover with frontal flattening and roll protection edge, Manoeuvrable and easy to control thanks to the driving and steering handle, Side walls with Euro perforation 10 x 38 mm to fix hooks and tools, Sides rounded off – a minimum of abutting edges, Body welded, self-supporting and torsionally rigid, Sheet steel, corrosion resistant and scratch-proof powder-coated, Drawers: Individual drawer stopping stops more than one drawer being opened, one-handed operation, Central locking with cylinder lock, 6 wide drawers (W 480 x D 400 mm) fully extending, Ball-bearing guide rails, Load capacity per drawer 20 kg, Sheet steel, corrosion resistant and scratch-proof powder-coated, GEDORE chassis: Total load capacity 300 kg, 4 smooth running wheels on ball bearings (swivel castors Ø 125 mm) with thread guard, one with total brake, Also in case of maximum loads: smooth running, manoeuvrability and track-keeping, Options: Can be equipped with GEDORE tool modules (1500 ES/1500 CT), Can be individually equipped with lengthwise and crosswise dividers, Special colours and designs available on request, Delivery without tools and accessories






Specificaties
Aantal laden
6
Buitenbreedte
625 mm
Buitendiepte
510 mm
Draagvermogen per lade
20 kg
Externe hoogte
903 mm
Fixed castor diameter (2x)
125 mm
Kleur
blauw
Load capacity per drawer
20 kg
Lockable
Ja
Materiaal
Plaatstaal
Net weight
48 kg
Number of drawers
6
Number of wheels
4
Single pull-out stop
Ja
Static load capacity
300 kg
Statisch draagvermogen
300 kg
Swivel castor diameter with brakes (2x)
125
Total height
900 mm
Total length
625 mm
Total width
510 mm
Working height
900 mm
