Haakse klemverbinding

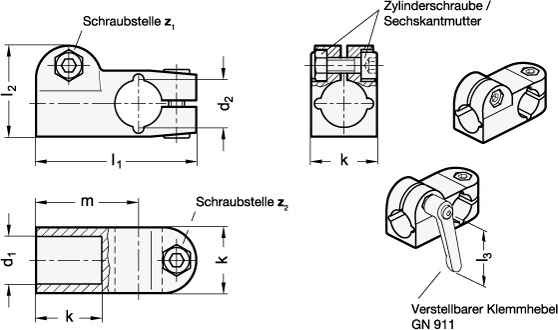

The clamping bores of T-angle connector clamps GN 191 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462. At the screw locations z1 / z2, the socket cap screws reduce the bore cross-section for clamping. For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
