Beschrijving

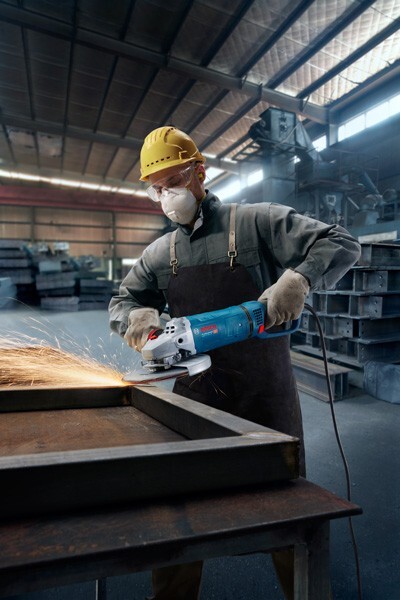

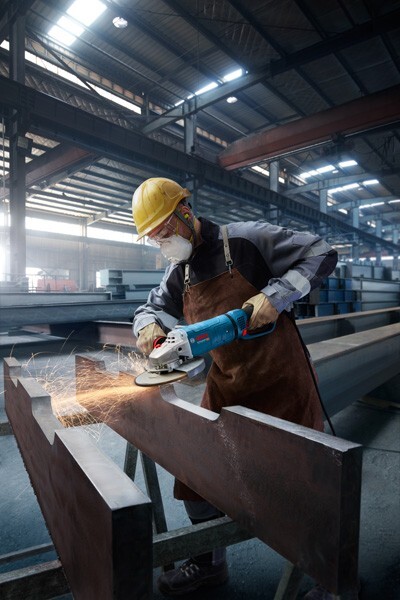

Angle Grinder GWS 27-230 PR, Finding an angle grinder with high performance that is comfortable and easy to use can be a challenge. The GWS 27-230 PR’s superior power gets tough jobs done faster. Its powerful 2,700W motor boosts efficiency by removing more material in less time. Convenient to handle, you can rotate the grinder's main handle by 90° at the flick of a switch. So you get the perfect grip – whether you’re grinding or cutting. The interlock function ensures that the tool cannot start until the main handle is fully rotated by 90° and locked-in with a "click". In addition, the GWS 27-230 PR comes with KickBack Control, PROtection switch and Vibration Control. The GWS 27-230 PR is your go-to tool for grinding and cutting metal, stone and tiles. It offers restart protection, has a soft start and a convenient keyless guard for grinding applications. Compatible with the GDE 230 FC-T Professional dust attachment. Cardboard box, Vibration Control auxiliary handle (2 608 900 000), Quick adjustment protective guard (2 605 510 281), Backing flange (1 605 703 099), Locking nut (1 603 340 040), Two-hole spanner (1 607 950 048)
Specificaties
Boring, Ø
22.2 mm
Gewicht
6.3 kg
Hoofdhandgreep
D-handgreep
Idle speed, from
5200 min-1
Idle speed, up to
6500 min-1
Meetonzekerheid k (oppervlakschuren (opruwen)
1.5 m/s²
Meetonzekerheid k (schuren met schuurpapier)
1.5 m/s²
Nominaal onbelast toerental
6500 min-1
Nominal input power
2700 W
Onbelast toerental
5200 - 6500 min-1
Packaging dimensions (width x length x height)
195 x 605 x 140 mm
Potborstel, Ø
100 mm
Schijf Ø
230 mm
Schuurbeker, Ø
110 mm
Slijpspindel draad
M14
Spanning, elektrisch
230 V
Spanningsbereik
220 - 240 V
Tool dimensions (length)
530 mm
Trillingsemissie ah [schuren met schuurpapier].
4.5 m/s²
Trillingsemissie ah [vlakslijpen (opruwen)]
6.5 m/s²
Uitgangscapaciteit
2700 W
Voltage range, from
220 V
Voltage range, up to
240 V
