Rek, module 3

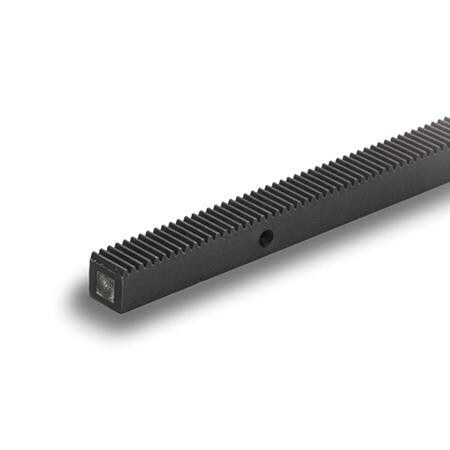

Gear racks GN 7822 are used in combination with spur gears GN 7802 to convert rotary motion into linear motion. They are used in automation applications with high repeatable precision and frequent changes of direction and load. The steel core increases the stiffness and prevents bending of the racks. In addition, modules 1 / 1.5 / 2 are designed for continuous installation of the racks. The gear racks have a reference profile toothing with a pressure angle of 20°. The force FS refers to the maximum permissible force that can be applied to a single tooth.
