Elesa

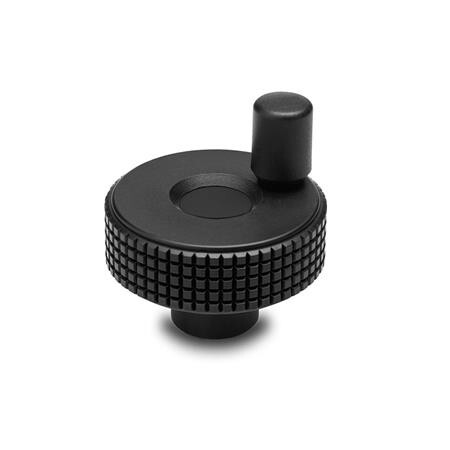

Invoerwiel met draaiknop

GN 735-40-B6-D Elesa 34398
PP - kunststof
Art.-Nr.: 1212411Leveranciersnummer: 735-40-B6-DEAN: 4045525364479

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 37 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Control handwheels GN 735 are used for setting operations with low torque. Coarse setting is made by means of the cylindrical handle (fingertip grip) followed by fine setting using the knurled rim of the handwheel.
Specificaties
Boring d2
B 6
Boring filterkolom
6
Gewicht
0.035 kg
Handwiel diameter d1
40
L1
26.5
L2
14
Materiaal
PP - kunststof
R
12.5
RoHS
Ja
Vorm
D - met draaiknop
b
14
d3
17
d4
M 4
d5
13.5
l3
20
l4
4
