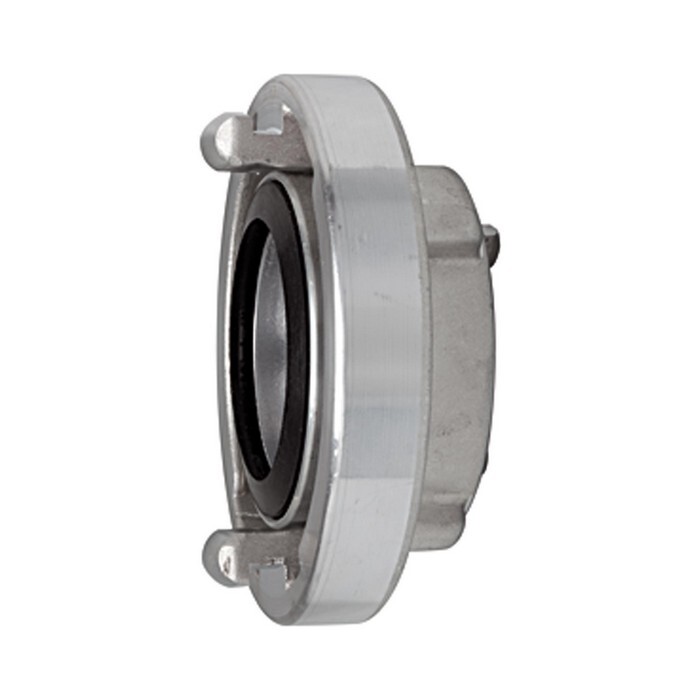

Overgangsstuk
31/66 mm schoenplaatjes, Storz D-C Aluminium, gesmede gebogen onderdelen PN16Art.-Nr.: 1174616Leveranciersnummer: 2405.6631EAN: 4047322254755
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving
Storz reducer, Aluminium, Storz size 52-C/25-D, Tappet distance 66/31 mm, Operating pressure max. 16 bar, Temp. -40 °C to 110 °C. High-quality series in forged aluminium. For quick and simple hose connections. User friendly, the coupling elements are joined without damaging the seal. Applications: Water lines, industrial plant engineering, firefighting.
Specificaties
Bracket distance 2
31 mm
Bracket spacing 1
66 mm
Material
Aluminium
Max. operating pressure
16 bar
Nominale grootte
D-C
Operating temperature max.
110 °C
Operating temperature min.
-40 °C
Schoren afstand
31-66 mm
Sealing material
NBR
Storz size
52-C/25-D
