Oliekijkglas volgens ATEX

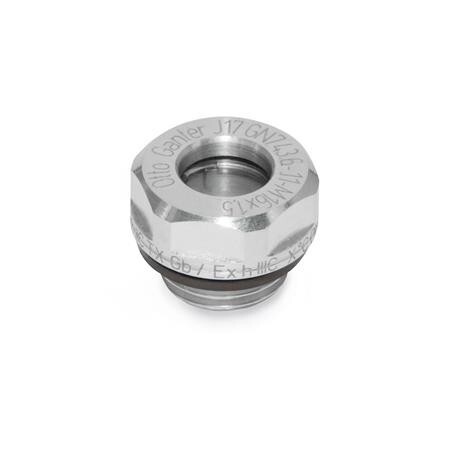

ATEX-Sight glasses GN 743.6 are suitable for use in an explosion risk environment. They comply with the guidelines 2014/34/EU.Detailed documentation is available and forms part of an order for this product. A detailed operating instruction is included with every GN 743.6 sight glass. In addition, the housing is provided with an ATEX-label. Further salient points of the oil level sight glasses GN 743.6 are: They offer genuine glass of high stability and scratch proof. The seal is achieved with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures. The sealing ring is embedded in a radial groove and cannot drop out, nor can it be extruded when tightening torque is applied. ATEX-Sight glasses GN 743.6 can also be used on pressurised tanks. Tests regarding maximum pressure are available. Assembly instruction: For mounting on walls of less than 4 mm thickness please use a mounting nuts GN 7430.
