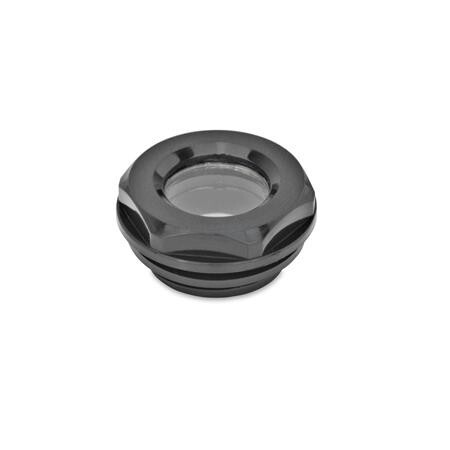

Oliekijkglas zonder reflector
GN 543.2-23-G1-B-SW Elesa, PA zwartPA - kunststof, polyamide
Art.-Nr.: 1205633Leveranciersnummer: 543.2-23-G1-B-SWEAN: 4045525286375
VPE (Verpakking): 10 stukAantal:
1 stukPakketgeschikt
Artikel in 24 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
The window of oil sight glasses GN 543.2 is embedded in the body during the injection process and it is therefore absolutely leaktight. The sealing ring is embedded in a radial undercut and it cannot be extruded during the tightening operation. The red version indicates a special "control point". Assembly instruction: For mounting on walls of less than 4 mm thickness please use a mounting nuts GN 7430.
Specificaties
Aandraaimoment
10 ... 12
Gewicht
0.014 kg
Inspectieopening d1
23
Kleur
SW - zwart
L1
11
L2
9.5
Materiaal
PA - kunststof, polyamide
RoHS
Ja
Schroefdraad d2
G 1
Vorm
B - zonder reflector
d3
43
s
38
