Oliepeilindicator

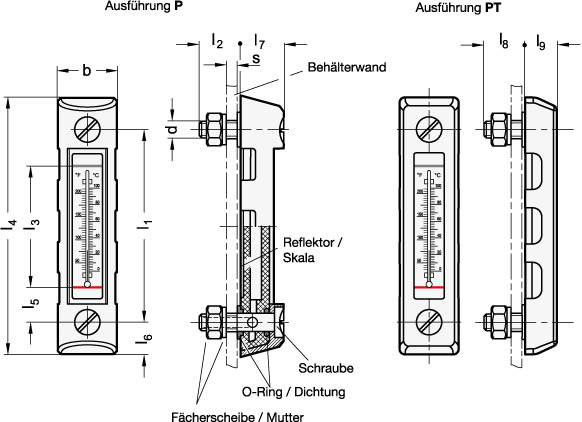

Oil level indicators GN 650.2 are supplied with a protective housing made of die-cast zinc or plastic which allows them to be used in harsh conditions. The liquid level can be seen from the side despite the protective housing. The housing of the oil level indicator consists of two parts, which are welded together with ultrasound for a perfect seal. The oil level indicators are individually tested for leaks with an air pressure of 3 bar. Oil level indicators GN 650.2 can also be used in pressurized containers. Test series results for pressure resistance are available. The reflector is a colorless anodized aluminum strip with marking lines or a temperature scale. The scale is outside the liquid column and is therefore well protected. The oil level indicator is supplied with a ready-mounted protective housing.
