Produkte
SKF

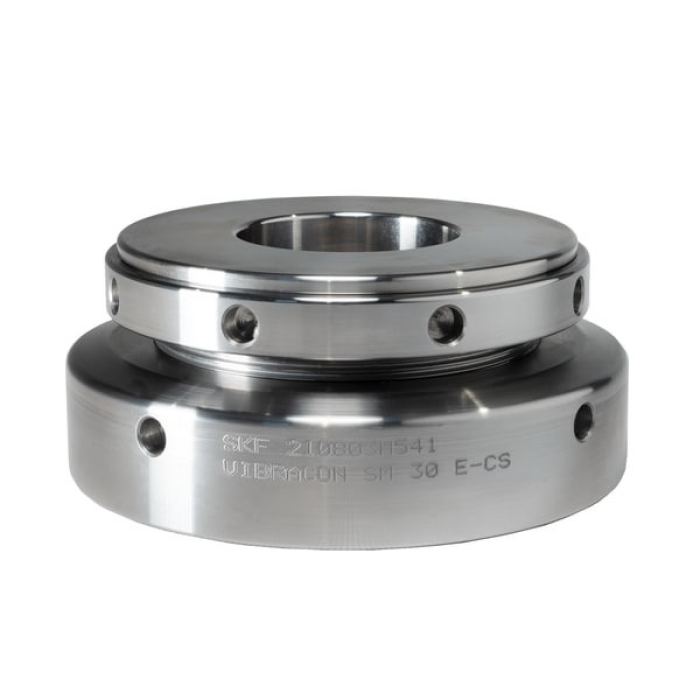

Passstück für Maschinenlagerung

SM 30 E-CS SKF Vibracon MaPro
Kohlenstoffstahl
Artikelnummer: 1526891Lieferantennummer: SM 30 E-CSZolltarifnummer: 84879059EAN: 7316581282647

Ausgabe: ​​ 1 StückPaketfähig
SKF-Logo
kurzfristig beschaffbar

Beschreibung
Carbon steel chocks (E-CS) are recommended for indoor use. They provide a cost-effective solution for standard applications, while offering reliable performance in environments such as on the factory floor. Applying additives at the mating surfaces provides initial protection – both before and during installation – and prevents parts from seizing when they are adjusted.
Spezifikationen
Anzugsdrehmoment für max. Schraubengröße
2570 Nm
Anzugsdrehmoment für min. Schraubengröße
1465 Nm
Außendurchmesser
140 mm
Durchmesser Schraubbohrung
39 mm
Farbe
grau-metallic
Gewicht
4,56 kg
Maschinenlast
90 kN
Material
Kohlenstoffstahl
Max. Höhe
65 mm
Maximale Schraubengröße
M36
Mimimale Schraubengröße
M30
Min. Höhe
50 mm
Nennhöhe
56 mm
Probebelastung
475 kN
Reduzierte Mindesthöhe
40 mm
Schlüssellochdurchmesser
8 mm
Teilung
2 mm
Werkstoff
Kohlenstoffstahl
