Products
SKF

Fitting piece for machine bearing

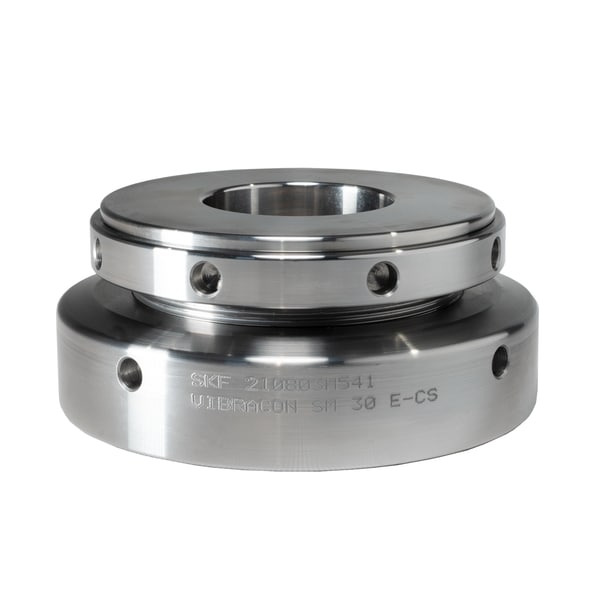

SM 30 E-CS SKF Vibracon MaPro
Kohlenstoffstahl
Item-no.: 1526891Supplier number: SM 30 E-CScustoms tariff number: 84879059EAN: 7316581282647

Quantity: ​​ 1 PiecePackable
SKF-Logo
Short-term Sourcing

Description
Carbon steel chocks (E-CS) are recommended for indoor use. They provide a cost-effective solution for standard applications, while offering reliable performance in environments such as on the factory floor. Applying additives at the mating surfaces provides initial protection – both before and during installation – and prevents parts from seizing when they are adjusted.

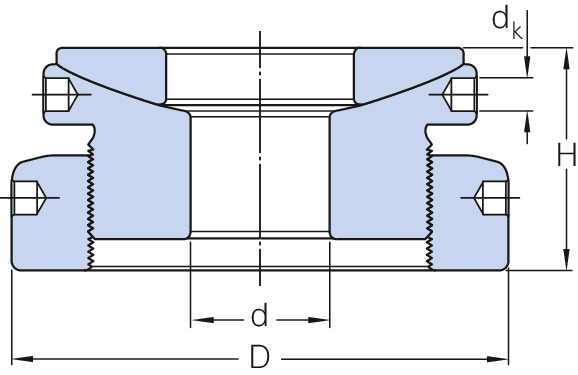

Attributes
Anzugsdrehmoment für max. Schraubengröße
2570 Nm
Anzugsdrehmoment für min. Schraubengröße
1465 Nm
Colour
grey-metallic
Durchmesser Schraubbohrung
39 mm
Maschinenlast
90 kN
Material
Kohlenstoffstahl
Material
Carbon steel
Max. Höhe
65 mm
Maximale Schraubengröße
M36
Mimimale Schraubengröße
M30
Min. Höhe
50 mm
Nominal height
56 mm
Outer diameter
140 mm
Pitch
2 mm
Probebelastung
475 kN
Reduzierte Mindesthöhe
40 mm
Schlüssellochdurchmesser
8 mm
Weight
4,56 kg
