Beschreibung

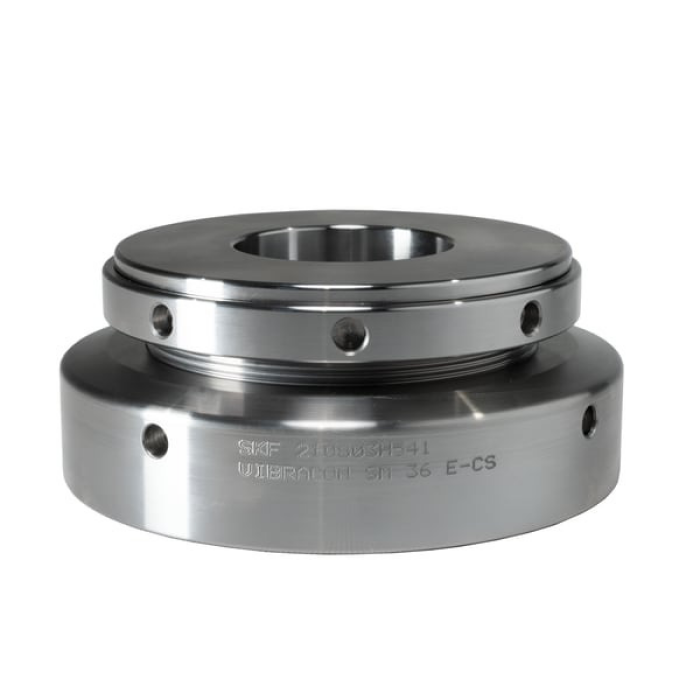

Carbon steel chocks (E-CS) are recommended for indoor use. They provide a cost-effective solution for standard applications, while offering reliable performance in environments such as on the factory floor. Applying additives at the mating surfaces provides initial protection – both before and during installation – and prevents parts from seizing when they are adjusted.
Spezifikationen
Anzugsdrehmoment für max. Schraubengröße
4100 Nm
Anzugsdrehmoment für min. Schraubengröße
2570 Nm
Außendurchmesser
160 mm
Durchmesser Schraubbohrung
45 mm
Farbe
grau-metallic
Gewicht
6,53 kg
Maschinenlast
120 kN
Material
Oberflächenbehandelter Kohlenstoffstahl
Max. Höhe
70 mm
Maximale Schraubengröße
M42
Mimimale Schraubengröße
M36
Min. Höhe
55 mm
Nennhöhe
61 mm
Probebelastung
650 kN
Reduzierte Mindesthöhe
45 mm
Schlüssellochdurchmesser
8 mm
Teilung
2 mm
Werkstoff
Kohlenstoffstahl
