SKF

Fitting piece for machine bearing

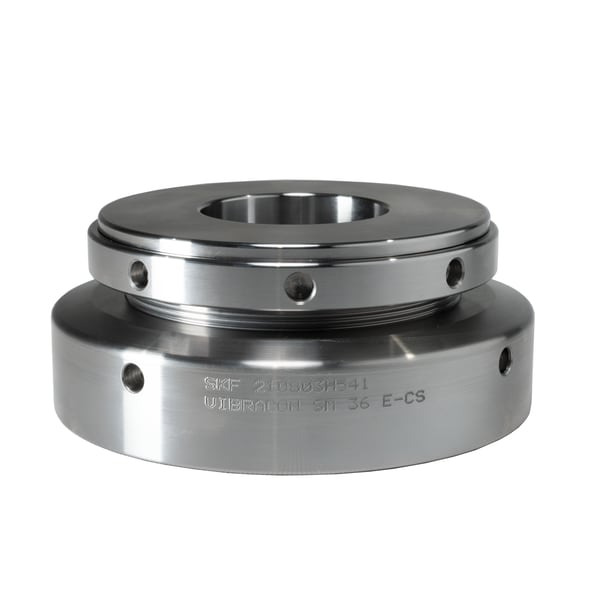

SM 36 E-CS SKF Vibracon MaPro
Kohlenstoffstahl
Item-no.: 1526895Supplier number: SM 36 E-CScustoms tariff number: 84879059EAN: 7316581282685

Quantity: ​​ 1 PiecePackable
SKF-Logo
Short-term Sourcing

Description
Carbon steel chocks (E-CS) are recommended for indoor use. They provide a cost-effective solution for standard applications, while offering reliable performance in environments such as on the factory floor. Applying additives at the mating surfaces provides initial protection – both before and during installation – and prevents parts from seizing when they are adjusted.
Attributes
Anzugsdrehmoment für max. Schraubengröße
4100 Nm
Anzugsdrehmoment für min. Schraubengröße
2570 Nm
Colour
grey-metallic
Durchmesser Schraubbohrung
45 mm
Maschinenlast
120 kN
Material
Surface-treated carbon steel
Material
Kohlenstoffstahl
Max. Höhe
70 mm
Maximale Schraubengröße
M42
Mimimale Schraubengröße
M36
Min. Höhe
55 mm
Nominal height
61 mm
Outer diameter
160 mm
Pitch
2 mm
Probebelastung
650 kN
Reduzierte Mindesthöhe
45 mm
Schlüssellochdurchmesser
8 mm
Weight
6,53 kg
