3/2-Wegeventil
IG 1/4", DN7, 1,5-10 bar, NC, 1250l/min 24 V DC, Lochbild nach NAMUR, Alu elo.Item-no.: 1176102Supplier number: 551.12customs tariff number: 84812090EAN: 4047322272438
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description

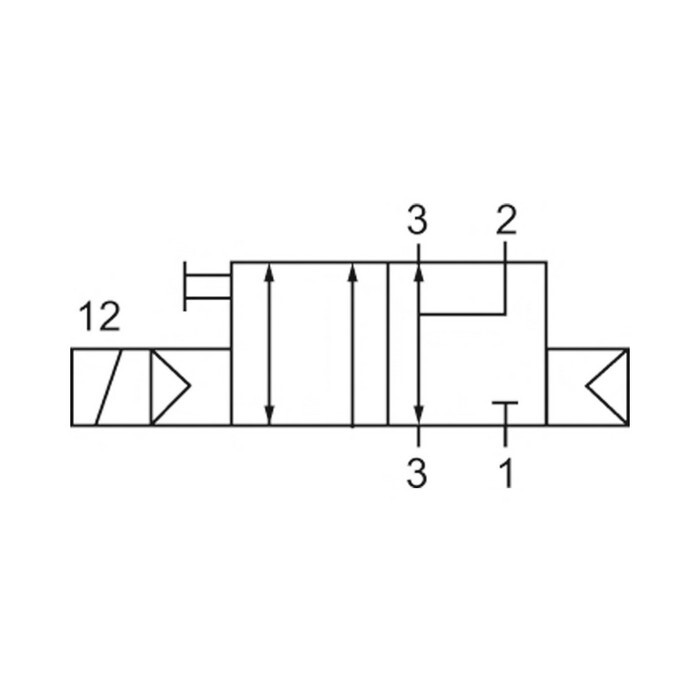

3/2-way valve, NAMUR, NC, Anodised aluminium, Operating temp. max. 70°C, Working pressure 1.5-10 bar, Connection G 1/4, 24 V DC. 3/2 and 5/2-way spool valves, monostable, with air purging function and pneumatic spring return. With latching manual operator and optional outgoing air restriction. The following finishes are available on request:
- Stainless steel, alternatively Ematal surfaces
- ATEX
- suitable for low temperatures
- suitable for high temperatures
Attributes
Connection
G 1/4
DN
7
Electrical connection
Device plug PG 9
Flow rate
1250 l/min
Housing
Anodised aluminium
Manual override
resting
Medium
Air, neutral gases (filtered)
Operating temperature max.
70 °C
Operating temperature min.
-20 °C
Power consumption
3 W=/ 5 VA~
Riegler article number
103658
Scope of delivery
Device plug PG 9, 1 coding pin, 2 O-rings, 2 screws
Sealing material
NBR
Slider
Stainless steel
Voltage
24 V DC
Working pressure max.
10 bar
Working pressure min.
1,5 bar
