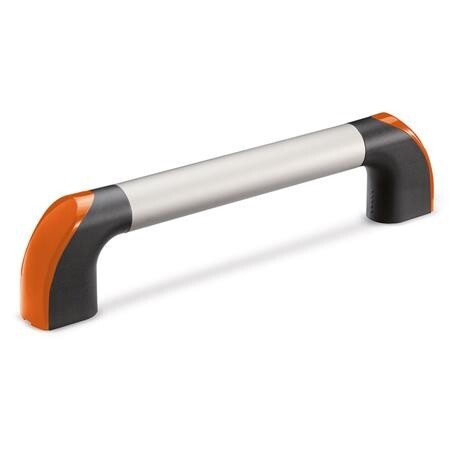

Bow handle, anodised handle tube
GN 767.1-35-1000-DOR Cover caps orangeAL - Aluminium
Item-no.: 1483802Supplier number: 767.1-35-1000-DORcustoms tariff number: 39263000EAN: 4045525662995
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
The design of the cabinet U-handles GN 767.1 matches the product family Ergostyle®. The mechanism (screws/nuts) is shrouded by the removable end caps. On assembly the two end caps are inserted from above. To remove the end caps, a flat screw driver is used in the recess to prise them out of their location.

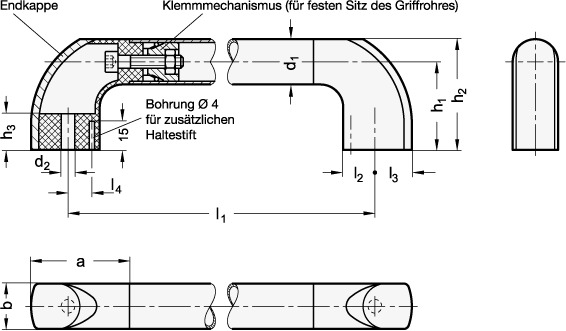

Attributes
A
74
Colour cover cap
DOR - orange, RAL 2004, glossy
Farbe (Endkappen)
DOR - orange, RAL 2004, glossy
Handle diameter d1
35
L2
24.5
Length l1
1000
Material
AL - Aluminium
RoHS
Ja
Weight
0.770 kg
b
35
d2
10.5
h1
67.5
h2
85
h3
28
l3
28.5
l4
18.5
