Angled bow handle
GN 425.1-12-125-SW Black coatedST - Stahl
ST - Steel
Item-no.: 1349392Supplier number: 425.1-12-125-SWcustoms tariff number: 83024900EAN: 4045525372191
Quantity:
1 PiecePackable
Price and stock visible after login
Description

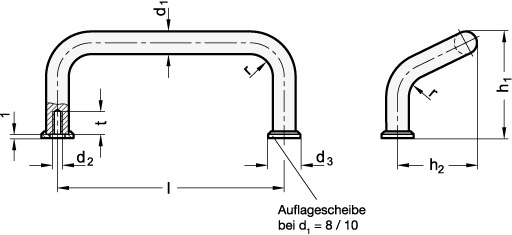

Cabinet U-Handles GN 425.1 are manufactured from a bent steel profile. Cabinet U-handles with Ø d1 = 8 and 10 are delivered with two location disks to ensure proper contact of the handle even in the case of large connecting holes. The disks are loosely enclosed. The stainless steel version is preferred over the chrome-plated version in steel for outdoor applications.
Attributes
Handle diameter d1
12
Length l
125
Material
ST - Steel
R
12
RoHS
Ja
Screw thread
M 6
Surface
SW - black, RAL 9005, textured matt
Weight
0.221 kg
h1
60
h2
44
t min.
12
tmin.
12
