Bow handle, angled
GN 565.2-20-112-A-SW blackAL - Aluminium
Item-no.: 1224049Supplier number: 565.2-20-112-A-SWEAN: 4045525295599
Quantity:
1 PiecePackable
Item available in 24 variants:
Price and stock visible after login
Description
Inclined cabinet U-handles GN 565.2 are manufactured from a bent aluminum profile. Their special features are their rigidity and ergonomical shaping. The angled contact surface allows improved access even in tight spaces such as corners. For type B, socket button head screws, hex nuts and washers are included parts of the order.

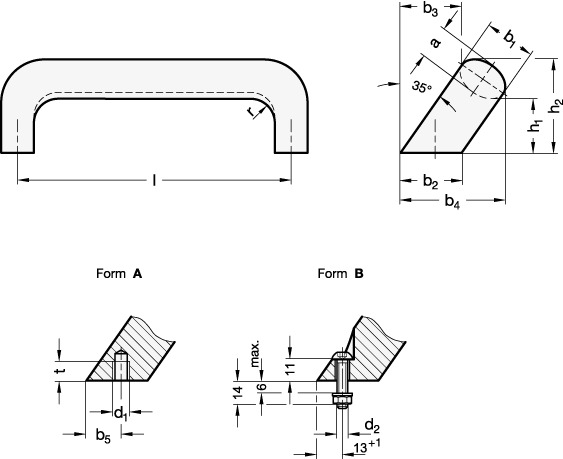

Attributes
A
13
Form
A - Mounting from the rear (threaded blind hole)
Handle width b1
20
Length l
112
Material
AL - Aluminium
R
13
RoHS
Ja
Screw thread
M 6
Surface
SW - black, RAL 9005, textured matt
Weight
0.102 kg
b2
24
b3
32
b4
50
b5
13.5
h1
32
h2
48
tmin.
10
