Design hinge
GN 138-ZD-40-42-A-SW black KU-coatedZD - Zinc die casting
Item-no.: 1343672Supplier number: 138-ZD-40-42-A-SWEAN: 4045525928411
Quantity:
1 PiecePackable
Item available in 16 variants:
Price and stock visible after login
Description
With their attractive design, hinges GN 138 are suitable for use in plant and machinery where a well-designed and stylish appearance is important. The concealed and tamper-proof mounting from the rear highlights and enhances the special appearance of the hinge. The hole spacings of the mounting holes m1 and m2 of the short version match typical hinges available on the market to allow use as a replacement hinge.
Attributes
Colour
SW - black, RAL 9005, textured matt
Form
A - Mounting from the rear
Length l2 (short)
42
Material
ZD - Zinc die casting
RoHS
Ja
Weight
0.072 kg

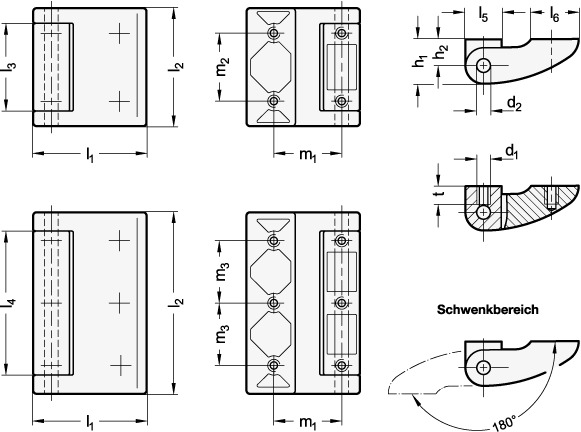

Width l1
40
d1
M 5
d2
5
h1
15
h2
9
l3
34
l5
12
l6
18
m1
25
m2
25
t
6
