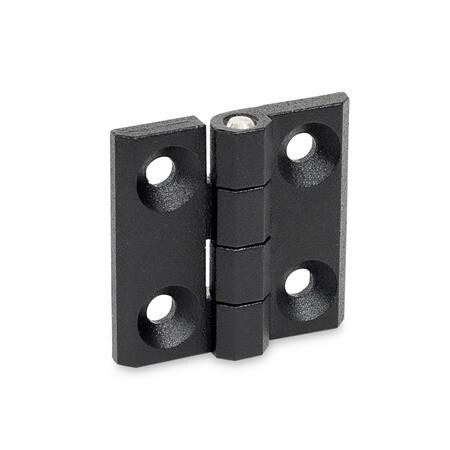

Hinge
GN 237-ZD-30-30-A-SW black KU-coatedZD - Zinc die casting
Item-no.: 1191354Supplier number: 237-ZD-30-30-A-SWEAN: 4045525678873
PU (PU NW): 10 PiecePU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 36 variants:
Price and stock visible after login
Description
Hinges GN 237 are characterized by their compact and stable design. The various material and surface choices in combination with two mounting types enable very specific applications.
Attributes
Form
A - 2x2 holes for countersunk screws
Length l2
30
Material
ZD - Zinc die casting
Material Form A
ZD | AL
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.020 kg
Width l1
30
d2
4.3
d3
3
h1
7.5
h2
4
h3
4.3
h4
8.6
l3 ZD
10.7
m1
18
m2
18
