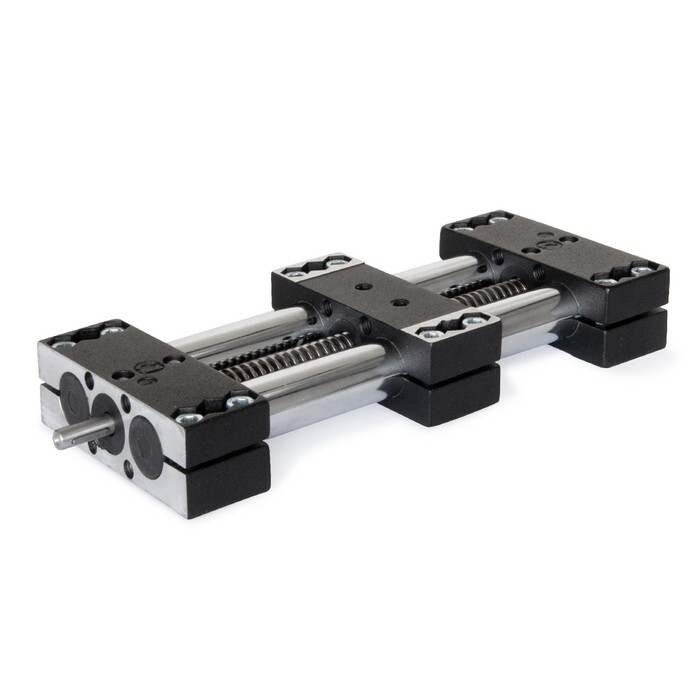

Double-tube linear unit
GN 491-18-100-R1-SCRSCR - steel, chrome-plated
Item-no.: 1350573Supplier number: 491-18-100-R1-SCREAN: 4045525064287
Quantity:
1 PiecePackable
Item available in 19 variants:
Price and stock visible after login
Description
In addition to the standard travel lengths specified in the above table for the double tube linear actuator GN 491 any length inside the maximum travel length is available. In order to measure the movement and positioning of the sliders, digital position indicators can be added.
Attributes

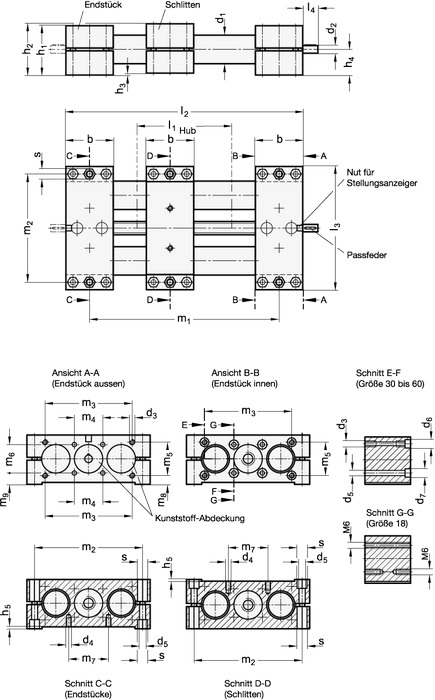

Diameter d
18
Form
R1 - Right-hand thread, shaft journal on one side
Gewindespindel
TR10x3
Handwheel
GN 9234
Key DIN 6885
A2x2x12
Length l1
100
Material
SCR - steel, chrome-plated
Max. stroke
420
Montageset
GN 491.1
Passfeder DIN 6885
A2x2x12
Position indicator
GN 955
RoHS
Ja
Threaded spindle
TR10x3
Weight
0.681 kg
b
28
d2
6
d4
M 5
d5
5.3
h1
28
h2
29
h3
1
h4
14.5
h5
0.75
l2 Gesamtlänge
3xb+l1
l3
81
l4
16
m1
2xb+l1
m2
68
m4
20
m6
20
m7
18
m9
4.5
sSechskant
8
