Ganter

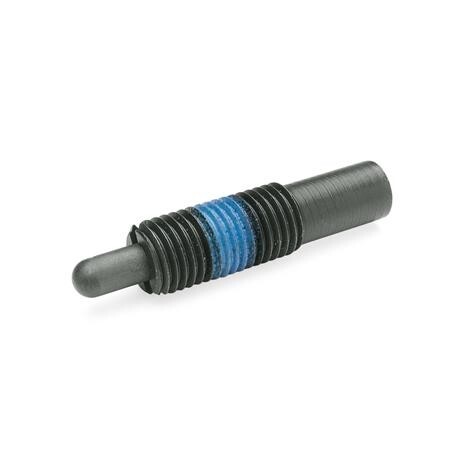

Spring-loaded thrust piece

GN 611-M10-8-L normal spring pressure
Item-no.: 1208028Supplier number: 611-M10-8-LEAN: 4045525309746

Quantity: ​​ 1 PiecePackable
Item available in 40 variants:
Short-term Sourcing

Description
Spring plungers GN 611 are used as ejectors, push-on and push-off operations in the sheet metal industry, as well as cushioners. The slot on the plunger side is provided for blind hole application. A special screwdriver GN 611.5 is available (see table).
Attributes
Article no. screwdriver
611.5-M10
End
16
Federdruck normal (Form L / LN)Anfang
6 N
Form
L - steel, normal spring pressure
L1
35
L2
25
RoHS
Ja
Screw thread d1
M 10
Spring travel w
8
Weight
0.010 kg
d2
4
d3
7.8
sw Innensechskant
3
