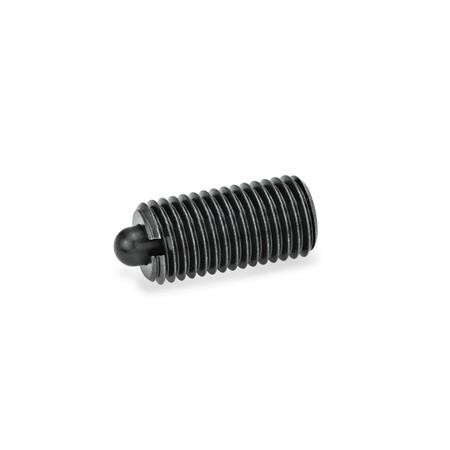

Spring-loaded thrust piece
GN 616-M3-S Bolt steel, normalST - Steel
Item-no.: 1180348Supplier number: 616-M3-SEAN: 4045525314832
PU (Packaging): 25 PieceQuantity:
1 PiecePackable
Item available in 22 variants:
Price and stock visible after login
Description
Spring plungers GN 616 are used as detents as well as for push-on and push-off applications and ejectors. The slot on the plunger side is provided for blind hole applications. A special screw driver GN 611.5 is available (see table).
Attributes
Artikel-Nr. für Schraubendreher
611.5-M3
End
4
Form
S - Bolt steel, normal spring pressure
Length l
12
Material
ST - Steel
RoHS
Ja
Screw thread (Form S) d1
M 3
d2
1
w Spring travel
1
