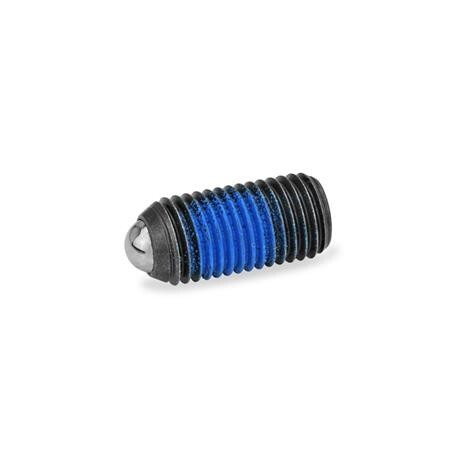

Thrust piece, spring-loaded
GN 615.3-M3-K-PFB Polyamide stain coatingST - Steel
Item-no.: 1208389Supplier number: 615.3-M3-K-PFBEAN: 4045525596733
Quantity:
1 PiecePackable
Item available in 30 variants:
Price and stock visible after login
Description

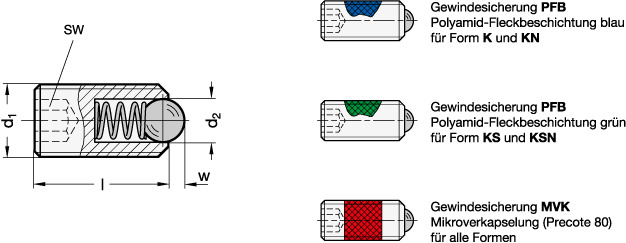

The PFB patch is a jamming thread locking (Polyamide patch). The coating for Type K or KN (standard spring load) is indicated blue, for Type KS or KSN (high spring load) green. For this Type of thread locking a relatively high torque is required. Therefore this version with internal hexagon is more preferable than the version with slot (GN 615). MVK (Micro encapsulation) is a gluing thread locking (indicated red).
Attributes
End
4.5
Federdruck normal (Form K/KN)Anfang
3 N
Form
K - Steel, normal spring pressure
Length l
8
Material
ST - Steel
RoHS
Ja
SW
1,5
Screw thread d1
M 3
Thread locking
PFB - Polyamide spot coating
Weight
0.001 kg
d2
1.5
w Spring travel
0.4
