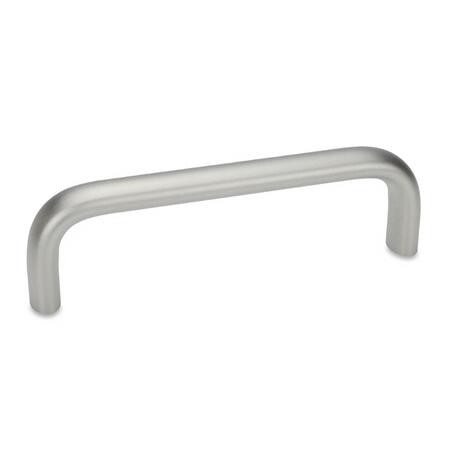

Stainless steel bow handle, matt blasted
GN 565.5-26-200-A-GSNI - Stainless steel
Item-no.: 1481819Supplier number: 565.5-26-200-A-GScustoms tariff number: 83024900EAN: 4045525573338
Quantity:
1 PiecePackable
Item available in 3 variants:
Price and stock visible after login
Description
The special features of cabinet U-handles GN 565.5 are their rigidity and ergonomical shaping. Cabinet U-handles are manufactured from a bent profile.
Attributes
A
17
Form
A - Mounting from the rear (threaded blind hole)
Handle width b
26
Length l (Form A, GS)
200
Material
NI - Stainless steel
R
19
RoHS
Ja
Screw thread
M 8
Surface
GS - matt blasted
Weight
0.715 kg
h1
57
t1min.
12
