Edelstahl- Filterregler
G 1/2, 0 - 15 bar Edelstahl 1.4404Item-no.: 1733114Supplier number: FRES.G12R.1-15BEAN: 4047322729734
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Stainless steel filter regulator, 1.4404, with secondary venting (reversible), incl. press. gauge, G 1/2, Control range 1 - 15 bar. Stainless steel filter regulators with self-relieving (not for liquid media) containing no non-ferrous metals for use in the food processing, chemical, mining, plant construction and special machinery industries as well as in the medical technology.

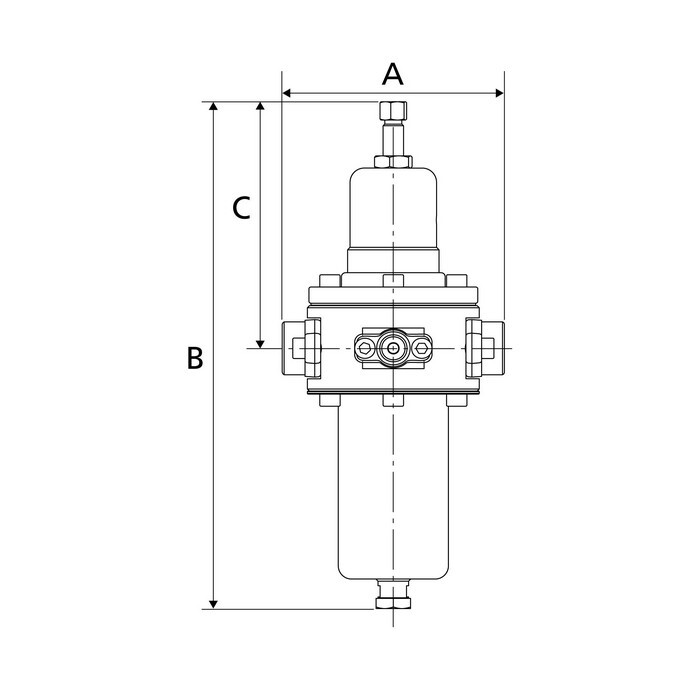

Attributes
A
109,0 mm
B
246,0 mm
C
121,0 mm
Dichtmaterial
FKM
Durchfluss
3000 l/min
Eingangsdruck max.
30 bar
Filterfeinheit
50 µm
Gehäuse
Edelstahl 1.4404 (AISI 316L)
Gewinde
G 1/2
Kondensatablass
Handablassventil
Mediumstemperatur max.
80 °C
Membrane
PTFE auf NBR-Träger
Regelbereich max.
15 bar
Regelbereich min.
1 bar
Umgebungstemperatur max.
80 °C
