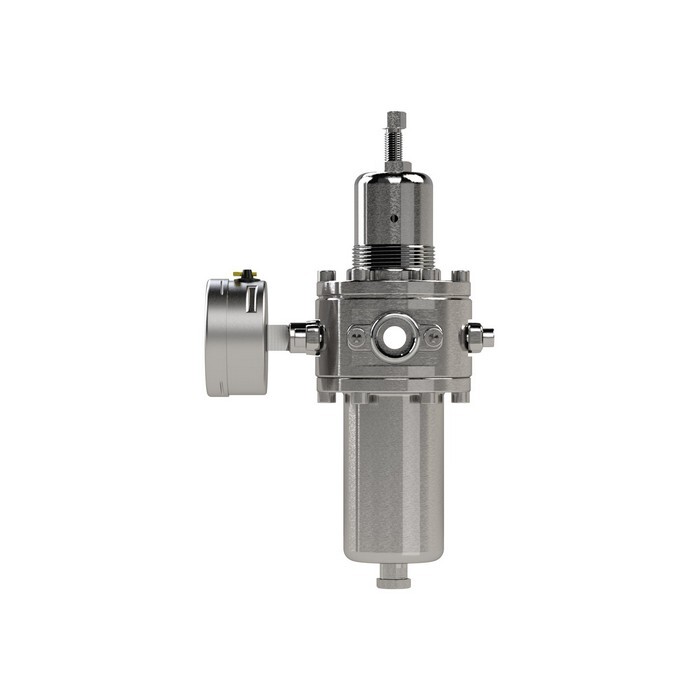

Roestvrijstalen filterregelaar
G 1/2, 0 - 15 bar Roestvrij staal 1.4404Art.-Nr.: 1733114Leveranciersnummer: FRES.G12R.1-15Bdouanetariefnummer: 84811005EAN: 4047322729734
Aantal:
1 stukPakketgeschikt
Artikel in 2 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Stainless steel filter regulator, 1.4404, with secondary venting (reversible), incl. press. gauge, G 1/2, Control range 1 - 15 bar. Stainless steel filter regulators with self-relieving (not for liquid media) containing no non-ferrous metals for use in the food processing, chemical, mining, plant construction and special machinery industries as well as in the medical technology.
Specificaties
A
109,0 mm
Ambient temperature max.
80 °C
Condensate drain
Manual drain valve
Control range max.
15 bar
Control range min.
1 bar
Durchflusswertmessung
bei P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar und Druckabfall Δ<sub>p</sub> ≤ 1 bar
Filter fineness
50 µm
Flow rate
3000 l/min
Housing
Stainless steel 1.4404 (AISI 316L)
Inlet pressure max.
30 bar
Medium temperature max.
80 °C
Membrane
PTFE on NBR carrier
Screw thread
G 1/2
Sealing material
FKM
b
246,0 mm
c
121,0 mm
