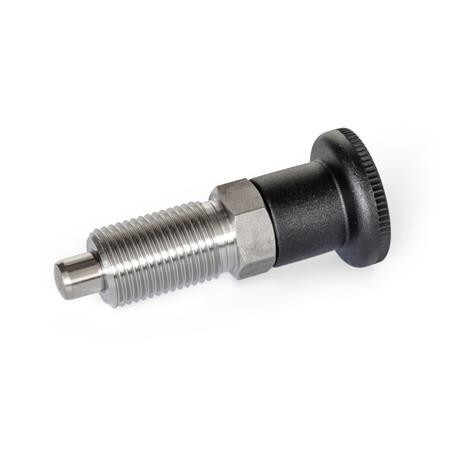

Stainless steel indexing plunger
GN 818-4-6-B-A4 with plastic buttonA4 - Stainless steel
Item-no.: 1481834Supplier number: 818-4-6-B-A4customs tariff number: 73181900EAN: 4045525573734
Quantity:
1 PiecePackable
Item available in 40 variants:
Price and stock visible after login
Description
Stainless steel indexing plungers GN 818 are set apart by the materials used, allowing these plungers to withstand particularly corrosive environments.
Attributes
End
11
Federdruck Anfang
3 N
Form
B - with plastic knob, without lock nut
L1
6
L2
35
Material
A4 - Stainless steel
RoHS
Ja
SW
10
Spring pressure in N ≈start
3
Weight
0.010 kg
d1 Pin bore
4
d2
M 8 x 1
d3
16
k
14
l3
16
l4
5
