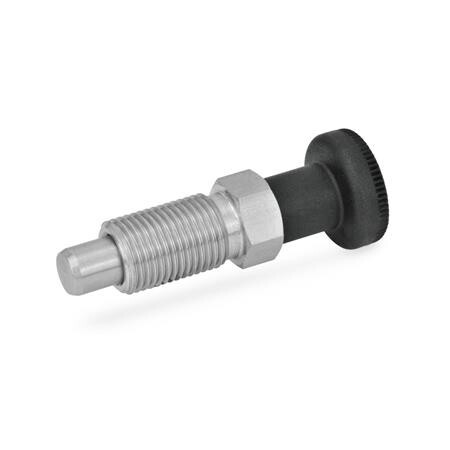

Locking bolt with knob
GN 717-3-M6-B-NI stainless steelNI - Stainless steel
Item-no.: 1211824Supplier number: 717-3-M6-B-NIEAN: 4045525667082
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 7 variants:
Price and stock visible after login
Description
Stainless steel indexing plungers GN 717 are characterized by small dimensions. These indexing plungers are universally applicable due to their prevention of misalignments and positioning errors of the mating indexing bores. The type C / CK with rest position are used for such applications where the plunger has to stay in its retracted position. During assembly, the max. tightening torques shown in the table should not be exceeded when securing the lock nut.
Attributes
Bolt diameter d1
3
End
12
Federdruck Anfang
3 N
Form
B - without detent lock, without lock nut
L1
30
L2
3.5
Material
NI - Stainless steel
Mounting thread d2
M 6
RoHS
Ja
SW
6
Weight
0.004 kg
d4
12
e
6.9
l3
12
l4
4.5
l5 Min.
10
l6
32.5
l7
7
max. Anzugsmoment
2 Nm
