Endoscope with bendable probe
TKES 10S L=1 m - SKF MaProItem-no.: 1296670Supplier number: TKES 10Scustoms tariff number: 85258900EAN: 7316575126254
Quantity:
1 PiecePackable
Price and stock visible after login
Description

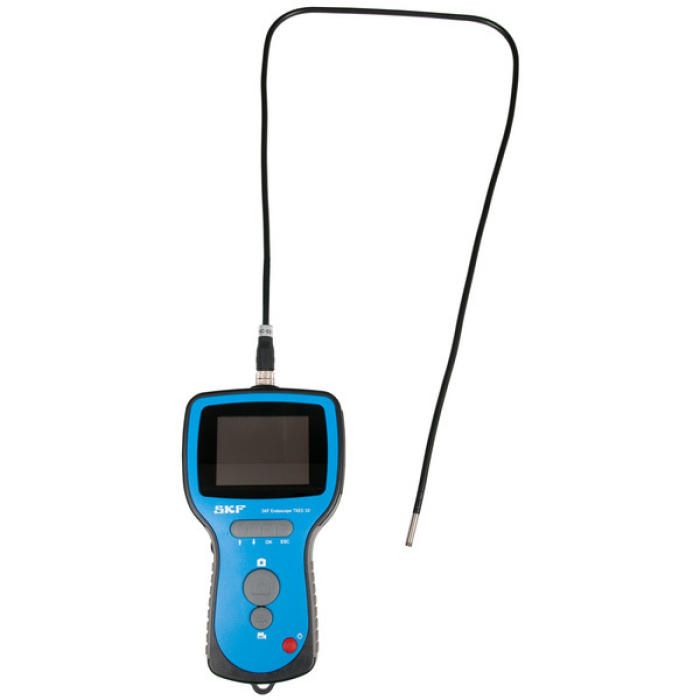

The SKF Endoscope TKES 10S is a first line visual inspection tool to examine the internals of your machinery. It helps to reduce the need to disassemble machinery for inspection, saving time and money. The compact display unit, with 3.5 inch backlit screen, allows images and video to be saved for reporting and sharing with others. This model features an articulated tip with powerful variable LED lighting that can be controlled from the display unit, allowing inspections in dark and difficult to reach locations.
Attributes
Batterie
Rechargeable Li-Polymer Battery (3.7 V)
Batterielebensdauer
4 h
Betriebstemperaturbereich
-20-60 °C
Colour
Blue,Black
Display
3,5“-TFT-LCD-Monitor mit 320 x 240 Pixeln
Inhalt
Display (TKES 10-DU); Halbstarrer Einsteckschlauch 1 m (TKES TS-1); SD-Speicherkarte; Seitenansichtadapter 90° (TKES 1-M1); Kabel für S-Video; Netzteil und Ladegerät mit landesspezifischem Stecker (TKES 10-CHARG); Mini-USB-zu-USB-Kabel; Reinigungszubehör;
Lichtquelle
20x white LED with adjustable brightness
Netzteil
Eingang: 100 – 240 V, 50/60 Hz, EU/GB/US/AUS oder via 5V USB 2.0, Kabel enthalten; Ausgang: 5 VDC, 2 A
Schutzart (IP)
Tube: IP 67;Display device: IP 55
