Spring cotter pin
GN 1024-ST-3-EST - Steel
Item-no.: 1343258Supplier number: 1024-ST-3-Ecustoms tariff number: 73209090EAN: 4045525064003
Quantity:
1 PiecePackable
Item available in 23 variants:
Price and stock visible after login
Description
Spring cotter pins GN 1024 are used for the axial fixing of bolts and axes and as distortion guard, e.g. for crown nuts DIN 935. Owing to their double winding, spring cotter pins of type D have a flatter spring characteristic and are therefore easier to install. Also, a retaining rope including a key ring can be attached to the double winding to safeguard the Spring cotter pin against loss.

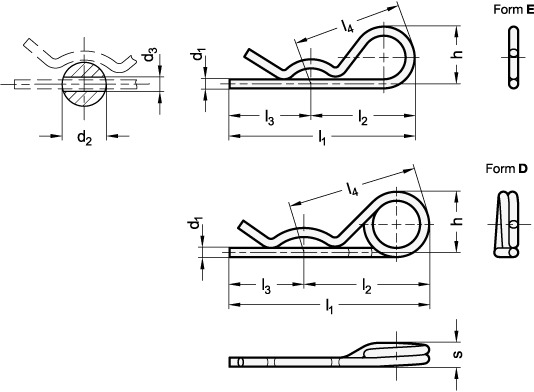

Attributes
Dismantling
40
For bolt Ø
16
Forces in N ≈mounting
55
Form
E - with single winding
Kräfte in N Montage
55
L1
72
L2
42
Material
ST - Steel
Outer diameter d2
10 ... 16
RoHS
Ja
Weight
0.010 kg
d1
3
d3 Recomm. mounting Ø
3.5
d3 empf. Aufnahme-Ø
3.5
h
23
l3
30
l4
44
