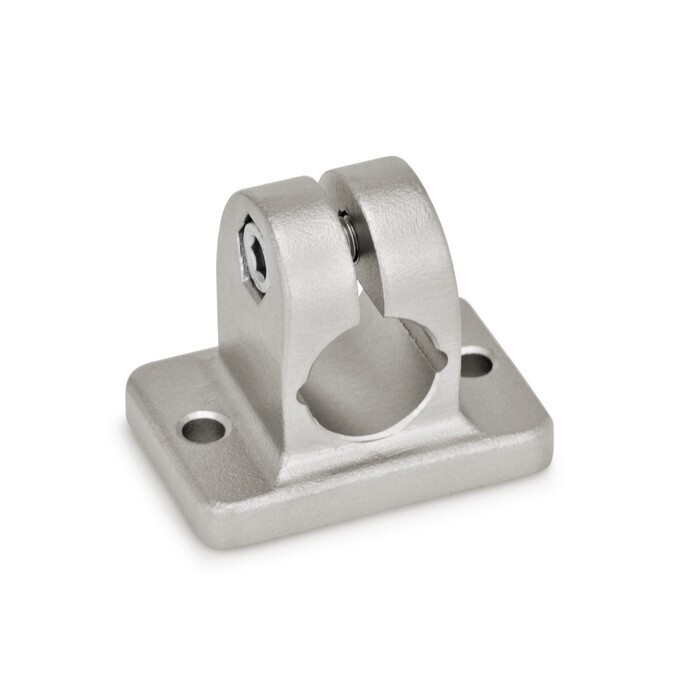

Flange clamp connector
GN 145-B12-2-NI Matt polished stainless steelNI - Stainless steel
Item-no.: 1189279Supplier number: 145-B12-2-NIEAN: 4045525053465
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description

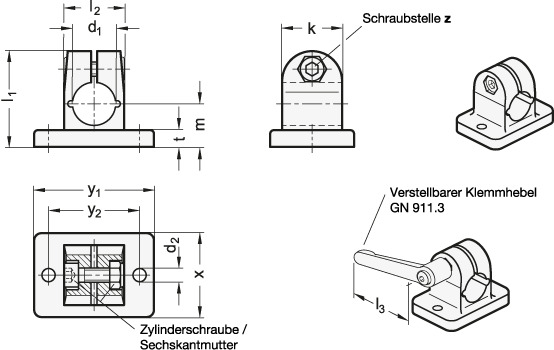

The clamping bore of flanged connector clamps GN 145 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462. Flanged connector clamps GN 145 can also be mounted to profile systems. At the screw location z, the socket cap screw reduces the bore cross-section for clamping. For clamping without tools, the socket cap screw can be replaced by an adjustable hand lever GN 911.3 listed in the table as accessory.
Attributes
Borehole d1
B 12
Code number
2 - with 2 stainless steel cylinder screws ISO 4762
L1
40
L2
25
Material
NI - Stainless steel
RoHS
Ja
Surface
NI - matt surface (vibratory finishing)
Weight
0.063 kg
d2
5.5
k Clamping length
25
m
18
t
7
x
35
y1
50
y2
38
z Bolting point
M6-20
