Flange clamp connector
GN 146.6-B30-A-4 stainless steelNI - Stainless steel
Item-no.: 1219612Supplier number: 146.6-B30-A-4EAN: 4045525940659
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description

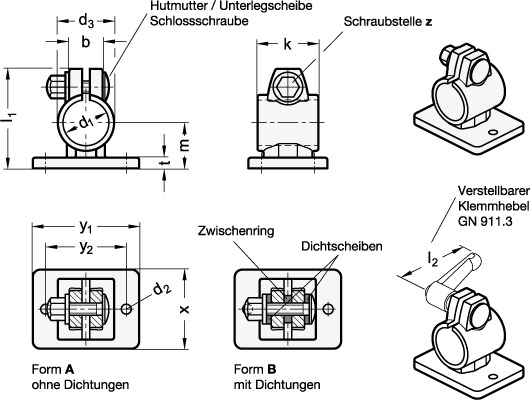

The clamping bores of GN 146.6 flanged connector clamps are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462. At the screw location z, carriage bolt and cap nut reduce the bore cross-section for clamping. Type B is equipped with seals at the screw location. For clamping without tools, the cap nuts can be replaced by an adjustable hand lever GN 911.3 listed in the table as accessory.
Attributes
Borehole d1
B 30
Clamping length b
22
Clamping length k
40
Code number
4 - with stainless steel cap nut DIN 917
Form
A - without seals
L1
65
Material
NI - Stainless steel
Recommended accessories clamping lever GN 911.3 for zl2
63 | 78
RoHS
Ja
Weight
0.300 kg
d2
6.5
d3
37
m
30
t
7
x1
52
x2
35
y1
70
y2
53
z Bolting points
M8-30
