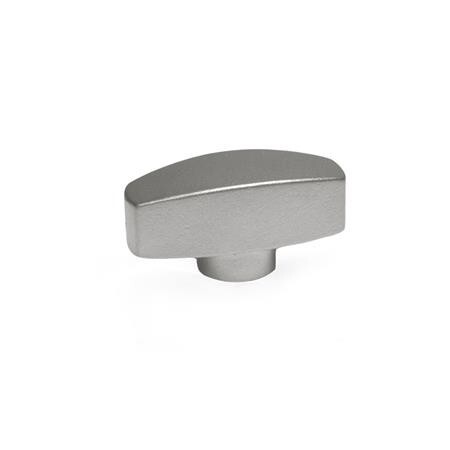

Wing nut
GN 434-A4-26-M4-MT Stainless steel A4 mattA4 - Stainless steel investment casting
Item-no.: 1479560Supplier number: 434-A4-26-M4-MTEAN: 4045525582736
Quantity:
1 PiecePackable
Item available in 1 variants:
Price and stock visible after login
Description
Wing nuts GN 434 clamp and fasten parts easily without tools. The ergonomic shape and the projecting collar make operation easier. The version in stainless steel A4 can be used in especially aggressive environments.
Attributes
Handle diameter d1
26
Material
A4 - Stainless steel investment casting
Outer diameter
11
RoHS
Ja
Screw thread d2
M 4
Surface
MT - matt blasted
Weight
0.020 kg
h1
10
h2
4.5
t min.
7
