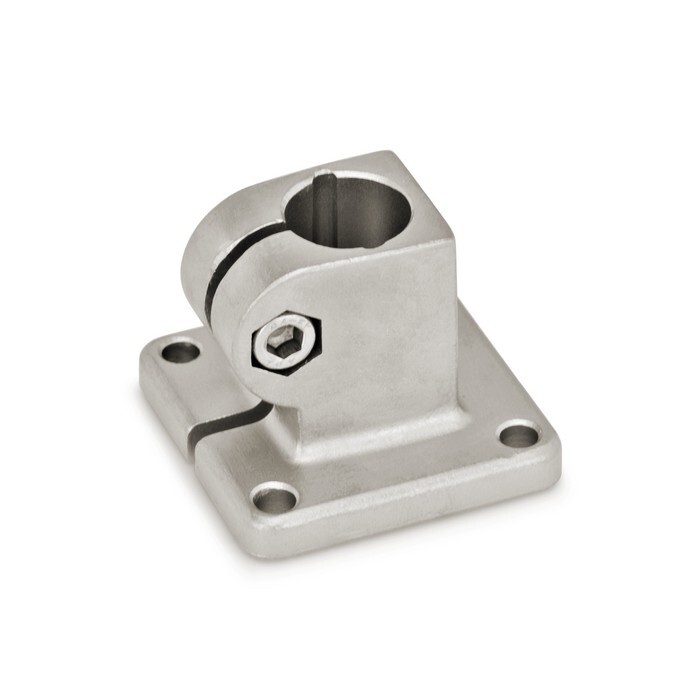

Foot clamp connector
GN 162-B12-2-NI Matt polished stainless steelNI - Stainless steel
Item-no.: 1189666Supplier number: 162-B12-2-NIEAN: 4045525061781
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
The clamping bore of base plate connector clamps GN 162 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462. At the screw location z, the socket cap screw reduces the bore cross-section for clamping.
Attributes
Borehole d1
B 12
Code number
2 - with stainless steel socket head cap screw ISO 4762
L1
34.5
L2
25
Material
NI - Stainless steel
RoHS
Ja
Weight
0.093 kg
d2
5.5
k Clamping length
40
t
7
x1
50
x2
38
y1
50
y2
38
z Bolting points
M6-20
