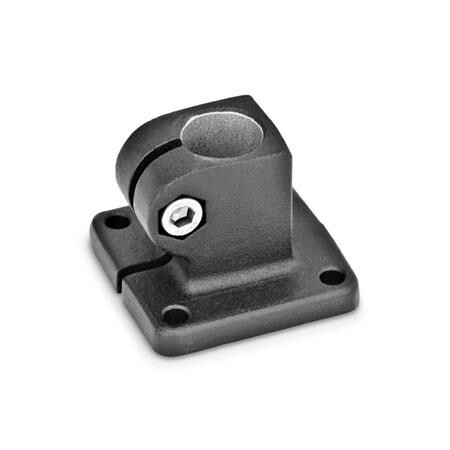

Foot clamp connector
GN 162-B10-2-SWAL - Aluminium
Item-no.: 1189662Supplier number: 162-B10-2-SWEAN: 4045525567016
Quantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description
The clamping bore of base plate connector clamps GN 162 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462. At the screw location z, the socket cap screw reduces the bore cross-section for clamping.
Attributes
Borehole d1
B 10
Code number
2 - with stainless steel socket head cap screw ISO 4762
L1
34.5
L2
25
Material
AL - Aluminium
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.097 kg
d2
5.5
k Clamping length
40
t
7
x1
50
x2
38
y1
50
y2
38
z Bolting point
M6-20
