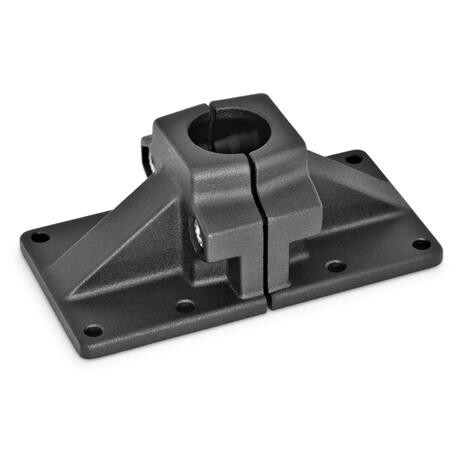

Foot clamp connector
GN 167-B20-2-SWAL - Aluminium
Item-no.: 1189921Supplier number: 167-B20-2-SWEAN: 4045525635166
Quantity:
1 PiecePackable
Item available in 32 variants:
Price and stock visible after login
Description
The clamping bore of wide base plate connector clamps GN 167 is not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462. The versions with square bores are also suitable for use with profile systems. At the screw locations z, the socket cap screws reduce the bore cross-section for clamping. For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
Attributes
Borehole d1
B 20
Code number
2 - with 2 stainless steel cylinder screws ISO 4762
L1
69
L2
46
Material
AL - Aluminium
Recommended accessories clamping lever GN 911 for zl4
63 | 78
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.394 kg
d1 / s
B - Bohrung
d2
7
k Clamping length
58
l3
146
t
7
x1
75
x2
60
y1
72
y2
35
y3
30
z Bolting points
M8-35
