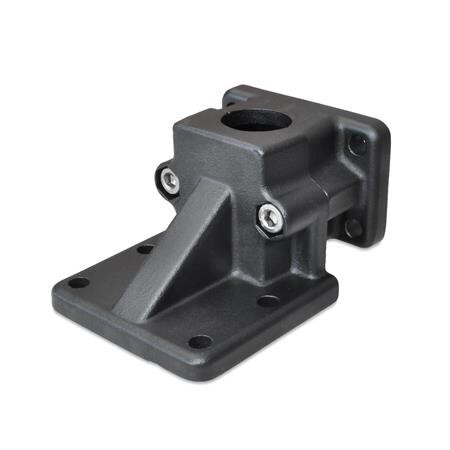

Foot flange clamp connector
GN 171-B20-2-SWAL - Aluminium
Item-no.: 1189977Supplier number: 171-B20-2-SWEAN: 4045525684201
Quantity:
1 PiecePackable
Item available in 32 variants:
Price and stock visible after login
Description
The clamping bore of flanged base plate connector clamps GN 171 is not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462. The square designs are also suitable for use with profile systems. At the screw locations z, the socket cap screws reduce the bore cross-section for clamping. For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
Attributes
Borehole d1
B 20
Code number
2 - with 2 stainless steel cylinder screws ISO 4762
L1
69
L2
53
Material
AL - Aluminium
Recommended accessories clamping lever GN 911 for zl5
63 | 78
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.344 kg
d1 / s
B - Bohrung
d2
7
k Clamping length
58
l3
103
l4
30
t
7
x1
75
x2
60
y1
72
y2
35
y3
30
y4
50
z Bolting points
M8-40
