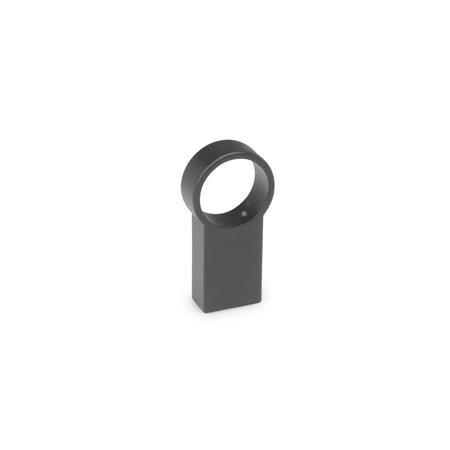

Foot section, black
GN 333.9-28-A-SWZD - Zinc die casting
Item-no.: 1196981Supplier number: 333.9-28-A-SWEAN: 4045525610774
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description
Handle legs GN 333.9 can be used for longer tubes or higher loads of tubular handles. They can be used for tube Ø 28 of the tubular handles GN 333, GN 333.1, GN 333.2 and GN 333.3.
Attributes
Form
A - Mounting from the rear (threaded blind hole)
Handle diameter d1
28
Material
ZD - Zinc die casting
RoHS
Ja
Screw thread
M 8
Surface
SW - black, RAL 9005, textured matt
Weight
0.088 kg
b1
25
b2
14
h1
50
h2
66
tmin.
15
