Handle tube with screw channel
GN 930-20-194-SW Black coatedAL - Aluminium
Item-no.: 1215830Supplier number: 930-20-194-SWEAN: 4045525683402
Quantity:
1 PiecePackable
Item available in 32 variants:
Price and stock visible after login
Description

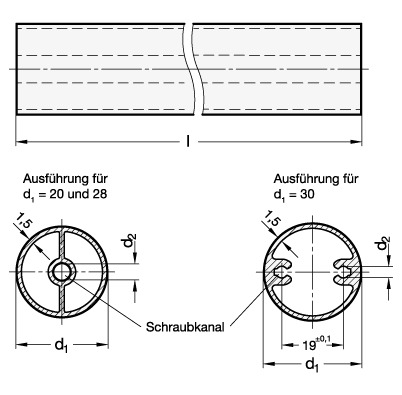

Handle tubes GN 930 with screw channel are designed for use in a variety of different tube handles (e.g. GN 333). For applications not requiring handle bases, the screw channel provides a very economical fixing solution with thread-tapping screws. The lengths l listed in the table are ex stock lengths. Depending to the finish, any lengths until max. 3000 mm are available.
Attributes
Handle diameter d1
20
Length l
194
Material
AL - Aluminium
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.062 kg
d2
4.5
für gewindefurchende Schrauben nach DIN 7500
M 5
