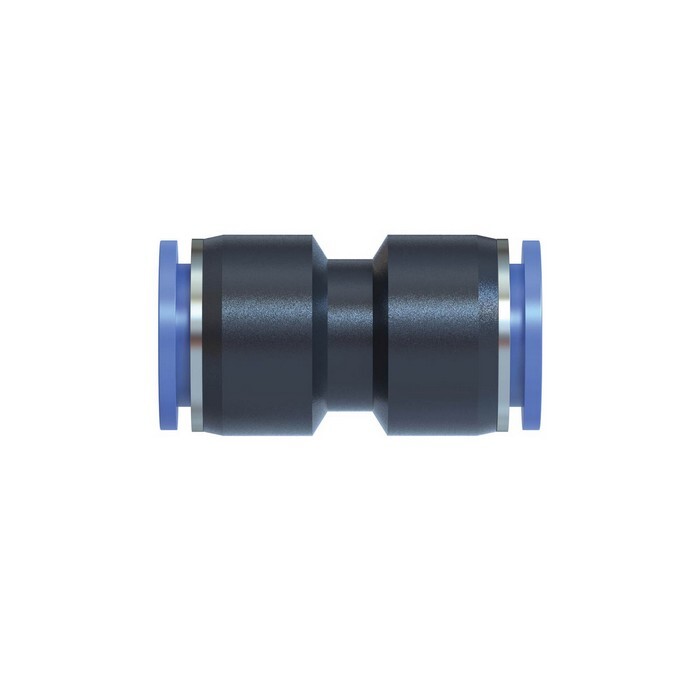

Straight connector Blue series for
Outer hose Ø 16Item-no.: 1375625Supplier number: 135.016-1EAN: 4047322599412
Quantity:
1 PiecePackable
Item available in 7 variants:
Price and stock visible after login
Description
Straight push-in connector »Blue Series«, for hose exterior Ø 16 mm, pmax short term 15bar, Plastic / nickel-plated brass. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
Arbeitsdruck max. kurzzeitig
15 bar
For outer hose Ø
16 mm
L1
49,0 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
152122
Sealing material
NBR
Series
Blue series
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
10 bar
Working pressure min.
-0,95 bar
