Gummipuffer
GN 351-50-40-M10-EE-70 Innengewinde beidseitig, 70° Shore ANR - Natural rubber (NR)
Item-no.: 1201092Supplier number: 351-50-40-M10-EE-70customs tariff number: 40169991EAN: 4045525607637
Quantity:
1 PiecePackable
Item available in 345 variants:
Price and stock visible after login
Description

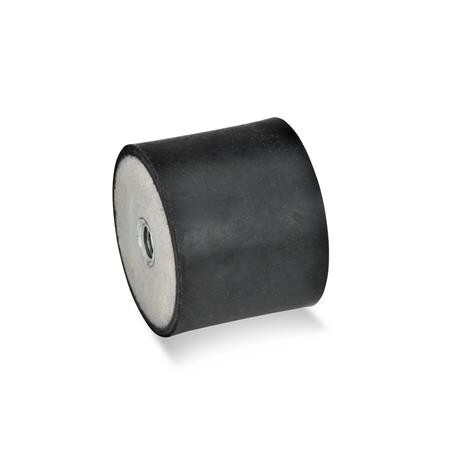

Rubber buffers GN 351 are suitable for the elastic mounting of machine units such as motors, compressors and pumps.
Attributes

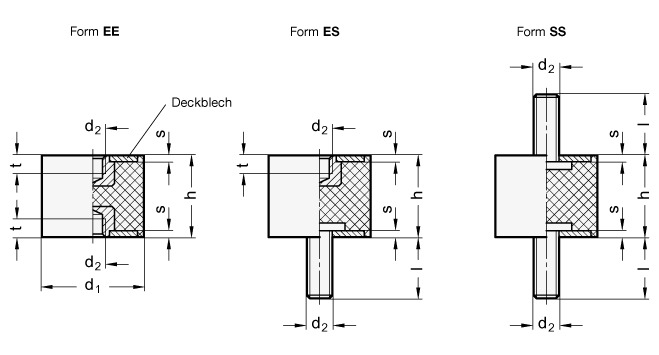

Form
EE - with 2 internal threads
Hardness
70 - hard
Height h ( Form EE)
40
Length l
28
Material
NR - Natural rubber (NR)
Material2
ST - Steel
Outer diameter d1
50
RoHS
Ja
Screw thread d2
M 10
Weight
0.147 kg
s
2
t
10
t ≈
10
