Handle rear mounting
GN 565.3-20-120-A-SW Aluminium black RAL 9005AL - Aluminium
Item-no.: 1206062Supplier number: 565.3-20-120-A-SWEAN: 4045525295834
Quantity:
1 PiecePackable
Item available in 16 variants:
Price and stock visible after login
Description
Cabinet U-handles GN 565.3 are manufactured from a bent aluminum profile. They are suitable for applications where lower lifting forces are required such as on lids or protective machine covers. The countersunk holes of type B allow fixing with self tapping screws or countersunk rivets.

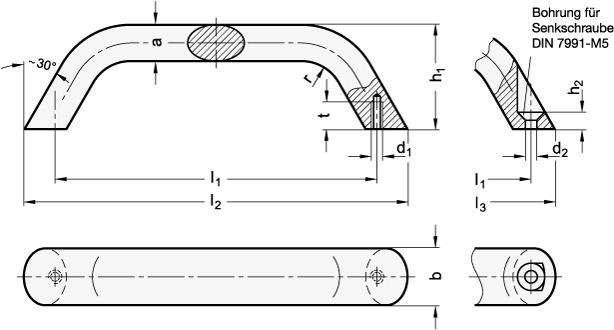

Attributes
A
13
Form
A - Mounting from the rear (threaded blind hole)
Handle width b
20
Length l1
120
Material
AL - Aluminium
R
13
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.086 kg
d1
M 5
h1
41
l2 Form A
142
l2Form A
142
tmin.
10
