1196471 #1
1196471 #11196471 #2
Ganter

Handwheel, safety

GN 322.4-125-K12-A-ZI without handle, pull engagement
AL - Aluminium
Item-no.: 1196471Supplier number: 322.4-125-K12-A-ZIcustoms tariff number: 84879090EAN: 4045525182738
Quantity: ​​ 1 PiecePackable​
Item available in 36 variants:
Short-term Sourcing
Description
The use of coupling attachments in handwheels other than specified is also possible.

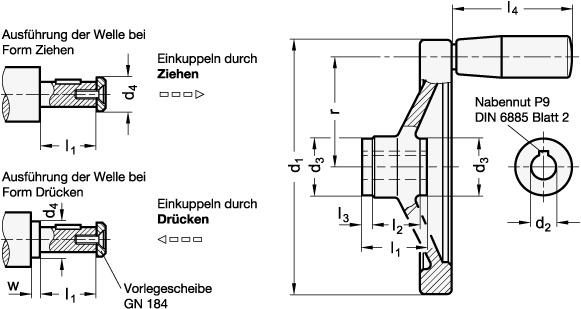

Attributes
Borehole d2
K 12
Borehole filtercolumn
12
Coupling GN 000.4
1
Form
A - without handle
Handwheel diameter d1
125
Kupplung GN 000.4Nenngröße
1
L1
28.5
L2
18
Material
AL - Aluminium
R
54
RoHS
Ja
Weight
0.368 kg
d3
28
d4 max.
17
d4max.
17
l3
5
l4
67.5
l4 ≈
67.5
marking
ZI - Engage by pulling
w min.
4
ØZylindergriff GN 598
23
