Clutch kit
GN 000.4-1-K12ST - Steel
Item-no.: 1186777Supplier number: 000.4-1-K12EAN: 4045525000179
Quantity:
1 Set
=
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
The PTFE coated surfaces of the coupling attachments GN 000.4 provide minimal friction between bearing surfaces even when lubrication is being neglected. An oil hole is provided which in the completely assembled safety handwheel connects with the handwheel hub. The coupling attachment is axially secured in the handwheel hub by a clamp nut.

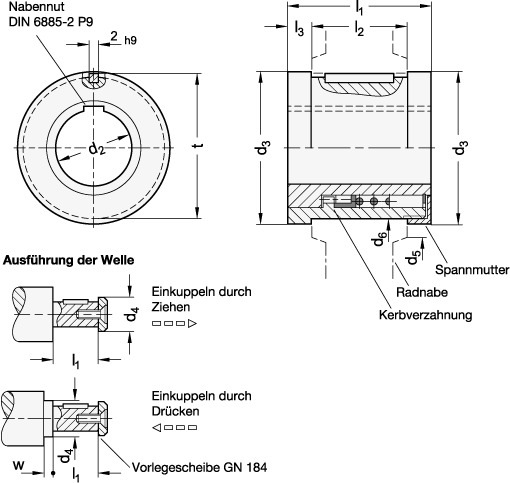

Attributes
Borehole d2
K 12
L1
28.5
Material
ST - Steel
Nenngröße
1
RoHS
Ja
Size no.
1
Weight
0.081 kg
d3
28
d4 max.
17
d4max.
17
d5 Mindest-Ø der Radnabe
29
d5Mindest-Ø der Radnabe
29
d6 Aufnahmebohrung der Radnabe H7
25
l3
5
t
26
w min.
4
