Ganter

Handwheel, safety, without handle

GN 321.4-125-K12-A-ZI Plain bearing, tension engagement
AL - Aluminium
Item-no.: 1196340Supplier number: 321.4-125-K12-A-ZIEAN: 4045525179073

Quantity: ​​ 1 PiecePackable
Item available in 36 variants:
Short-term Sourcing

Description
The use of coupling attachments in handwheels other than specified is also possible.
Attributes

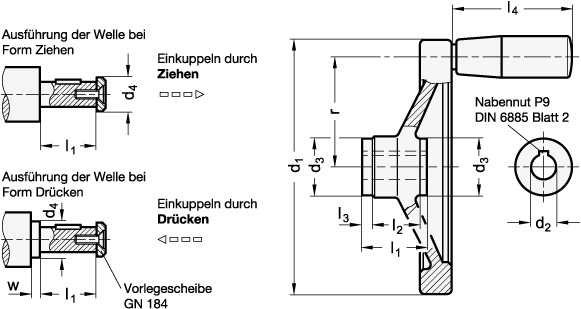

Borehole d2
K 12
Borehole filtercolumn
12
Coupling GN 000.4Size
1
Form
A - without handle
Handwheel diameter d1
125
Kennzeichen
ZI - Einkuppeln durch Ziehen
L1
28.5
L2
18
Material
AL - Aluminium
R
54
RoHS
Ja
Weight
0.377 kg
d3
28
d4 max.
17
d4max.
17
l3
5
l4
67.5
marking
ZI - Engage by pulling
w min.
4
ØZylindergriff GN 598
23
