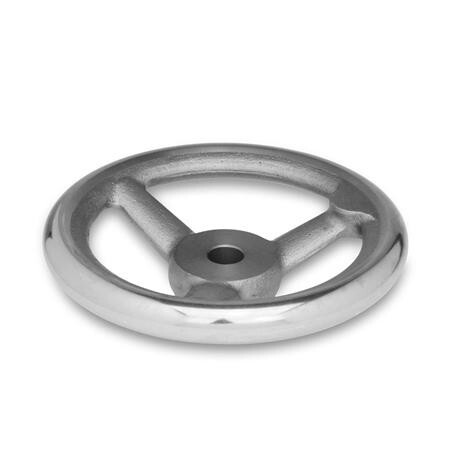

Handwheel with large hub
GN 950.1-GG-125-B14-A GG, without handle, boreGG - Cast iron
Item-no.: 1134553Supplier number: 950.1-GG-125-B14-AEAN: 4045525411487
Quantity:
1 PiecePackable
Item available in 16 variants:
Price and stock visible after login
Description
Going beyond the DIN standard, handwheels GN 950.1 are also available with Ø d1 = 180 and in types F and D with fixed or revolving handle. Handwheels GN 950.1 have extended hubs with larger diameters, allowing for larger bores and an increased distance between the wheel rim and the fastening surface.
Attributes
Anzahl der Speichen
3
Bore labelling
B - without hub groove
Borehole diameter d2
14
Form
A - without handle
Handwheel diameter d1
125
L1
26
L2
45
Material
GG - Cast iron
R
47
RoHS
Ja
Weight
0.750 kg
b
16
d3
34
l3
65
Ø Griff
20
