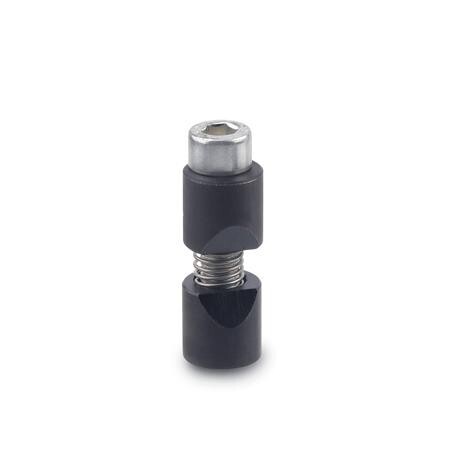

Clamping element clamping round
GN 928-12ST - Steel
Item-no.: 1215824Supplier number: 928-12EAN: 4045525395558
Quantity:
1 PiecePackable
Item available in 14 variants:
Price and stock visible after login
Description
With the shaft clamping units GN 928, round workpieces from 6 to 125 mm can be rapidly, accurately and economically clamped. The threaded hole d5 can be used for attaching a jig or fixture or a fixing screw for holding the clamping unit in an axial position during an assembly operation.
Attributes
Article no. assembly tool
928.1-5
Diameter d
12
L2
12
Material
ST - Steel
RoHS
Ja
SW
5
Screw thread
M 6
Weight
0.022 kg
d3 Rundteil
15 - 20
d4
12
d5
M 4
e
d~3~ / 2 + 3,5
l1 max.
39
l3
6
max. Anzugsmoment
10 Nm
